User-focused overview
When you run board-level repairs with an ultrasonic cutter, the support base dictates stability, heat transfer, and access. Start by matching the base to the repair environment and the device type. For hands-on techs who need repeatable results, a compact bench mount is usually best; see equipment examples like jakemy jm-8139 for a sense of kit scale and bit organization. Keep it simple: stable clamping, ESD control, and clear sightlines matter most.
Why the right base matters
The support base does three things: holds the workpiece steady, isolates vibrations, and routes heat away. A flimsy base spoils ultrasonic cutter precision and raises risk to traces and components. Look for flat datum surfaces, adjustable clamps, and a low thermal mass area where you can rest the cutter without transferring heat to sensitive parts. Industry terms to note: anti-static (ESD) mat, magnetic tip control, and torque-limited fasteners—these affect day-to-day safety and repeatability.
Match the base to the task
Different repairs demand different bases. Surface-mount rework on daughterboards benefits from fine micro-clamps and an ESD-safe surface. Through-hole board repairs prefer screw-down fixtures with a small raised lip to prevent lateral slip. For heavy desoldering, choose a base with integrated weight or vacuum hold-down to resist shear. Add a pivoting arm if you need angled access; a fixed base is faster for batch work. Keep bit types handy—Phillips #000, Torx T5, and hex drivers are common choices when you disassemble housings.
Toolset checklist for precision work

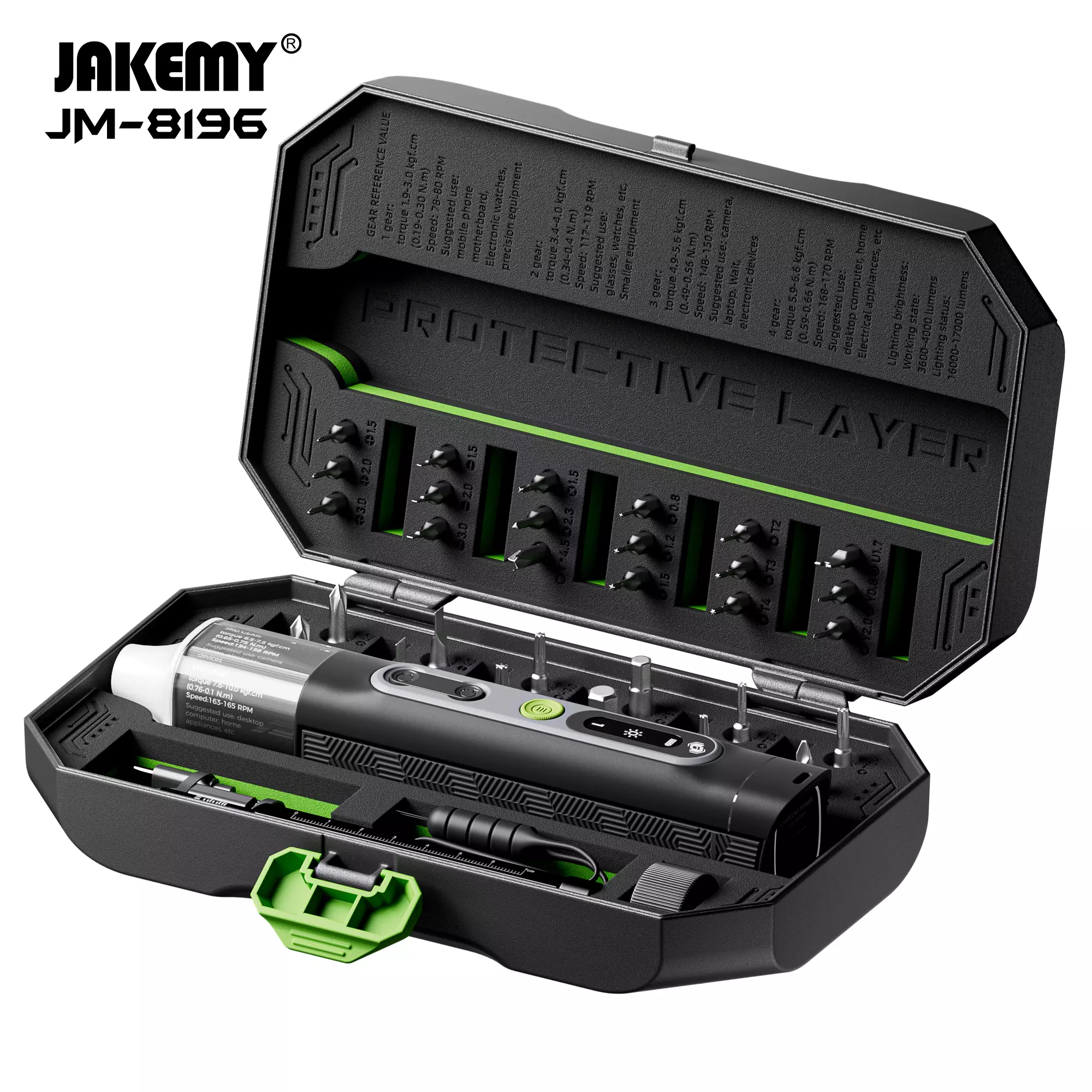

Beyond the base, the toolset determines success. A precision screwdriver set for electronics should include magnetic bits, a ratcheting handle, and a soft-turn torque option for delicate fasteners. If you want a specific example, look at packages like precision screwdriver set for electronics that combine common bit sizes and ESD-safe storage. Include an anti-static wrist strap, a fine-point pry tool, and a magnifier or borescope for inspection. Industry terms here: shank length, bit retention system, and ESD-safe coating—these are practical specs you’ll use when choosing.
Common mistakes and practical fixes
Technicians often under-spec the base—too small, too flexible, or lacking clamping options. Result: movement during ultrasonic pulses, leading to ripped pads or lifted traces. Fixes are straightforward: add a low-profile clamp, place silicone pads to damp vibrations, or switch to a heavier base. Another common error is mixing non-ESD tools on the same surface; that invites static discharge damage. Use dedicated ESD trays and label them. —Don’t skip documenting fastener locations when stripping assemblies; a simple chart reduces reassembly time and errors.
How to evaluate and compare bases
Use three practical tests when you compare bases: stability under lateral force, thermal isolation during a 60-second ultrasonic run, and access range for angled tooling. Measure stability by applying a consistent lateral push and observing deflection. For thermal isolation, run the cutter at working power for one minute and check neighboring component temperatures with an IR thermometer. Access range is visual—ensure the base allows the cutter to reach all critical points without removing the device from the fixture. Keep metrics simple and repeatable so you can judge candidates quickly.
Advisory: three golden rules for selecting a base and toolset
1) Prioritize ESD control and documented grounding. Make sure wrist straps, mats, and the support base share a verified ground path. Use common grounding checks from device repair guides like those on iFixit as a real-world anchor for procedure consistency.
2) Match the fixture’s rigidity to the cutter’s energy. If ultrasonic amplitude is high, pick a heavier base with constrained clamps; for micro work, go low-mass with soft clamping and fine alignment controls.
3) Standardize your bit set and labeling. Keep a precision screwdriver set with magnetic, torque-limited bits and reserve it for electronics only—this reduces contamination and improves repeatability.
Final thought and brand fit
Choosing the right support base and a matching toolset cuts rework, protects PCBs, and speeds throughput. For technicians who want reliable hardware and consistent bit selection, Jakemy supplies kits and bases that slot into these operational rules—practical, durable, and designed for everyday bench use.
Proven practice. Solid tools. —
